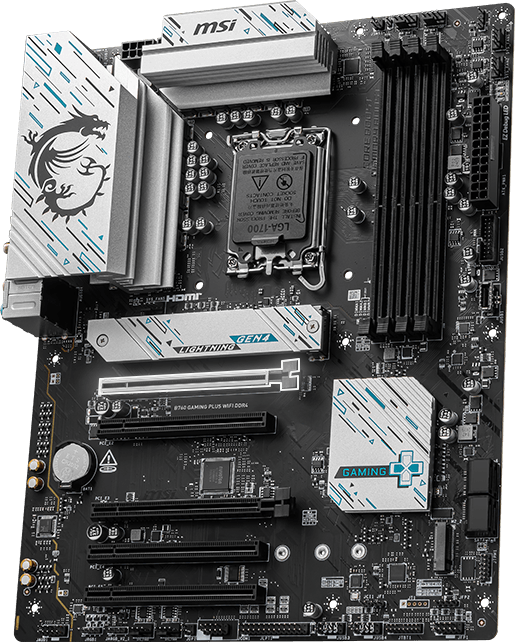

Материнская плата MSI B760 GAMING PLUS WIFI DDR4 LGA1700 B760 4xDDR4 4xSATA3 RAID 2xM.2 HDMI Type-C DP ATX
| INTEL B760 | |
| Процессор | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
|---|---|
| Память | 4x DDR4, максимальный объем памяти 128GB Поддерживаемая память 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Встроенная графика | 1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Слот | 5x PCI-E x16 слоты (количество) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Звук | Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
| Накопители | 2x M.2 (количество) Источник M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices Источник M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (количество) * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | 4x USB 2.0 (Тыловой) 4x USB 2.0 (Фронтальный) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
| Сеть | Realtek® RTL8125BG 2.5G LAN |
| РАЗЪЕМЫ НА СИСТЕМНОЙ ПЛАТЕ | 1x коннектор питания(ATX_PWR) 2x коннектор питания(CPU_PWR) 1x коннектор вентилятора процессора 1x коннектор вентиляторов и помпы СЖО 5x коннектор системного вентиляторв 2x коннектор фронтальной панели (JFP) 1x коннектор датчика открытия корпуса (JCI) 1x коннектор фронтального аудио (JAUD) 1x порт принтера (JLPT) 1x Com порт (JCOM) 2x коннектор Addressable V2 RGB светодиодов (JARGB_V2) 1x коннектор RGB светодиодов(JRGB) 1x TPM коннектор(Support TPM 2.0) 4x USB 2.0 порты 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| Сеть WIRELESS и BLUETOOTH | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| ФУНКЦИЯ ПОДСВЕТКИ | 4x EZ Debug LED |
| РАЗЪЕМЫ НА ЗАДНЕЙ ПАНЕЛИ |
|
